C-Series Contracting HASEL Actuator

C-5015-06-08-B-ACAC-50-096

Contracting actuator that can achieve fast and smooth actuation with muscle-like performance. The number of actuators within the stack can be varied to suit the desired size or performance characteristics.

Benefits of HASEL Actuators:

  • Electrically controlled

  • Direct linear analog motion

  • Soft, compliant structure

  • High bandwidth

  • Intelligent self-sensing

  • Cost-effective materials

  • Silent operation

  • Fast actuation speeds

  • Compact size

  • Lightweight and portable

  • Modular

  • Easily customizable

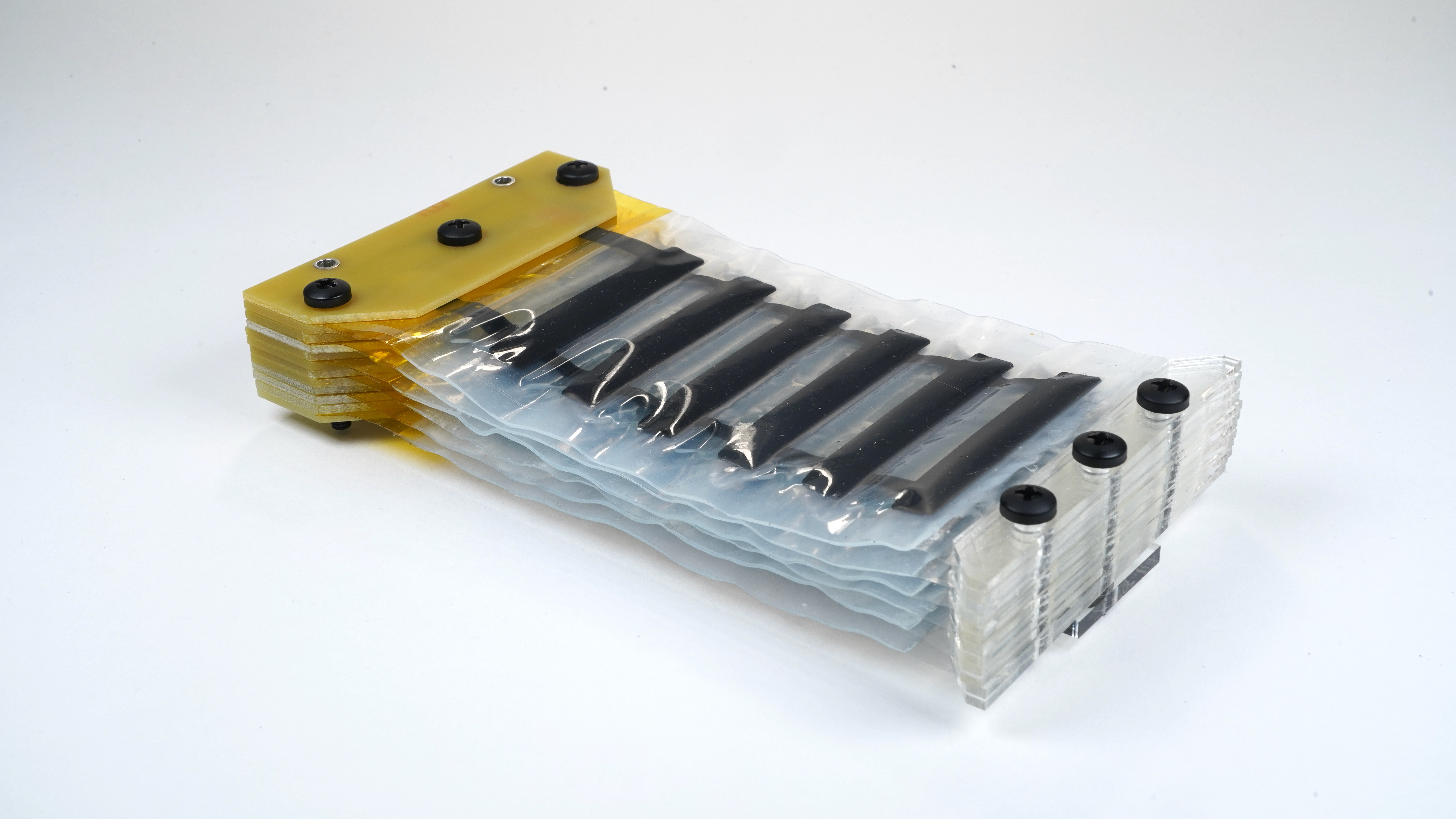

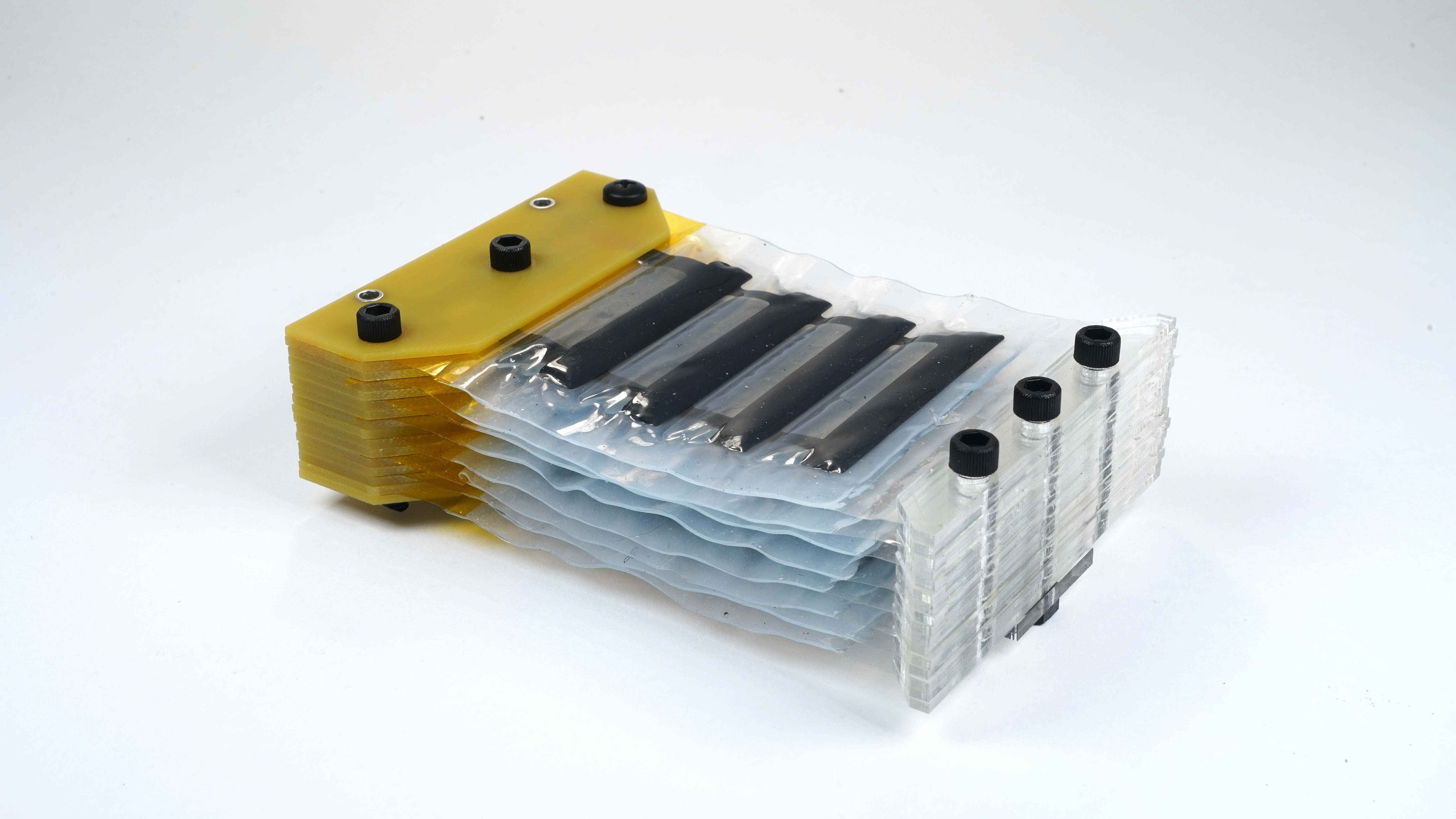

Image of Contracting HASEL Actuator From Artimus Robotics

Product Specifications

Part Number
C-5015-06-08-B-ACAC-50-096
Actuation Type
Contracting
Series
C-Series
Model Number
C-5015
Actuator Stack Quantity
8
Pouches Per Actuator
6
Mounting
Rigid End-Mount Brackets
Weight
204 g
Dimensions (Rest)
76.2 X 147 X 27.2 mm
Voltage Range
2 kV - 8 kV
Blocking Force
240 N (@8 kV, <1% Strain)
Free Stroke
7 mm (@8 kV)
Typical Lifetime
10 k - 1 M Cycles

Relevant Media
