E-Series Expanding HASEL Actuator

E-0025-04-10-A-ACAA-60-050

Expanding actuator that can achieve fast and smooth actuation with muscle-like performance. The number of actuators within the stack can be varied to suit the desired size or performance characteristics.

Benefits of HASEL Actuators:

  • Electrically controlled

  • Direct linear analog motion

  • Soft, compliant structure

  • High bandwidth

  • Intelligent self-sensing

  • Cost-effective materials

  • Silent operation

  • Fast actuation speeds

  • Compact size

  • Lightweight and portable

  • Modular

  • Easily customizable

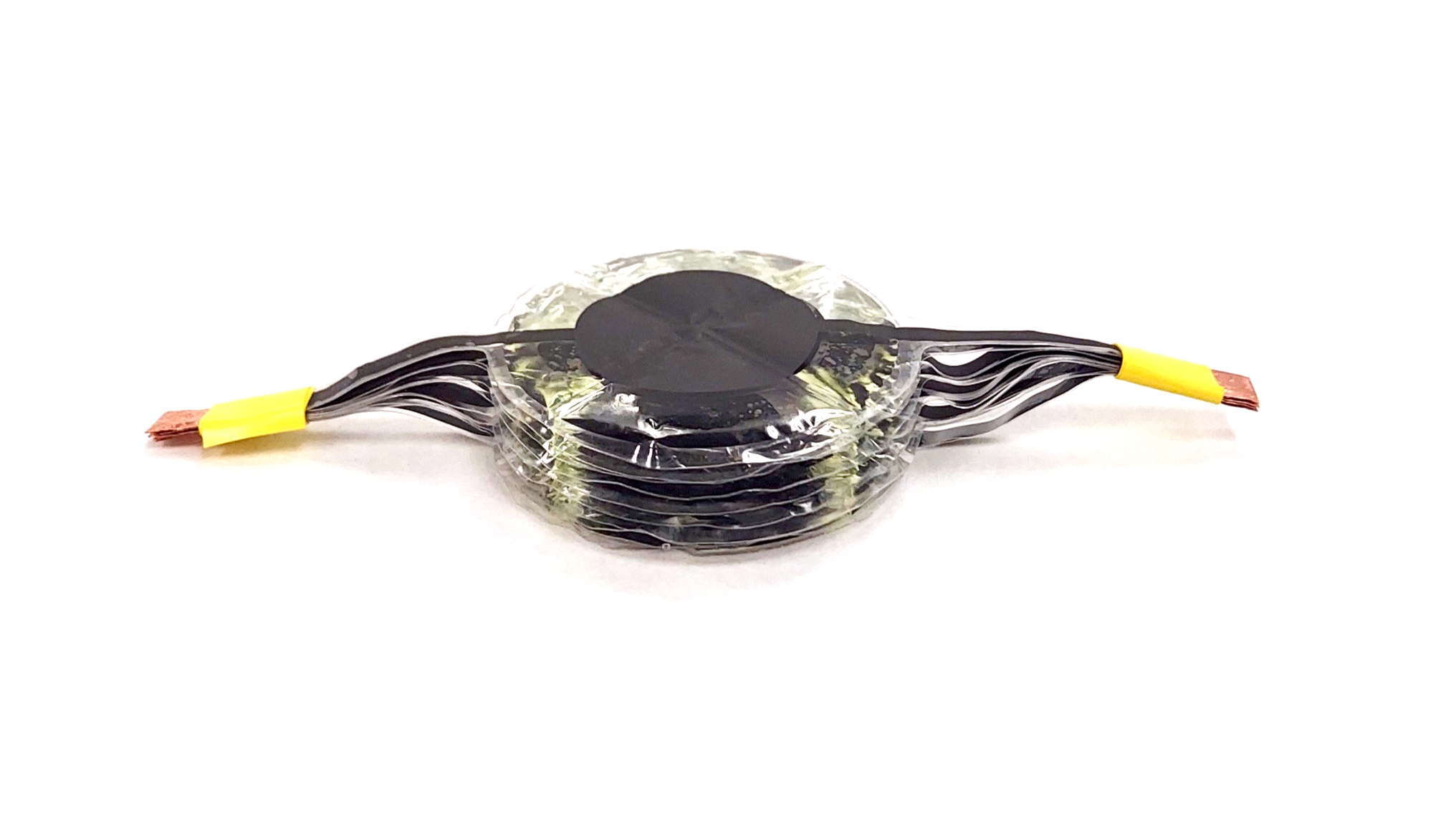

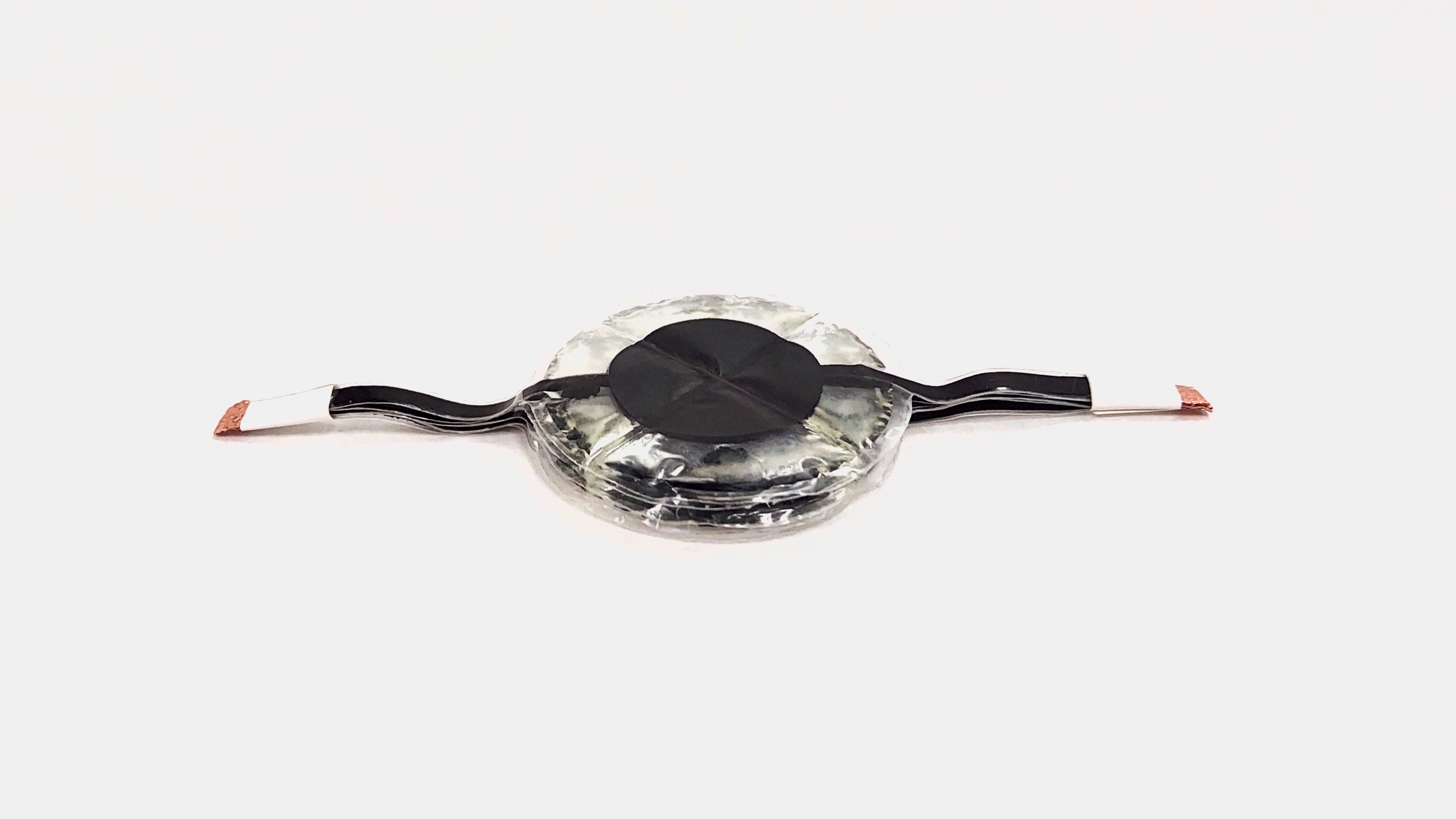

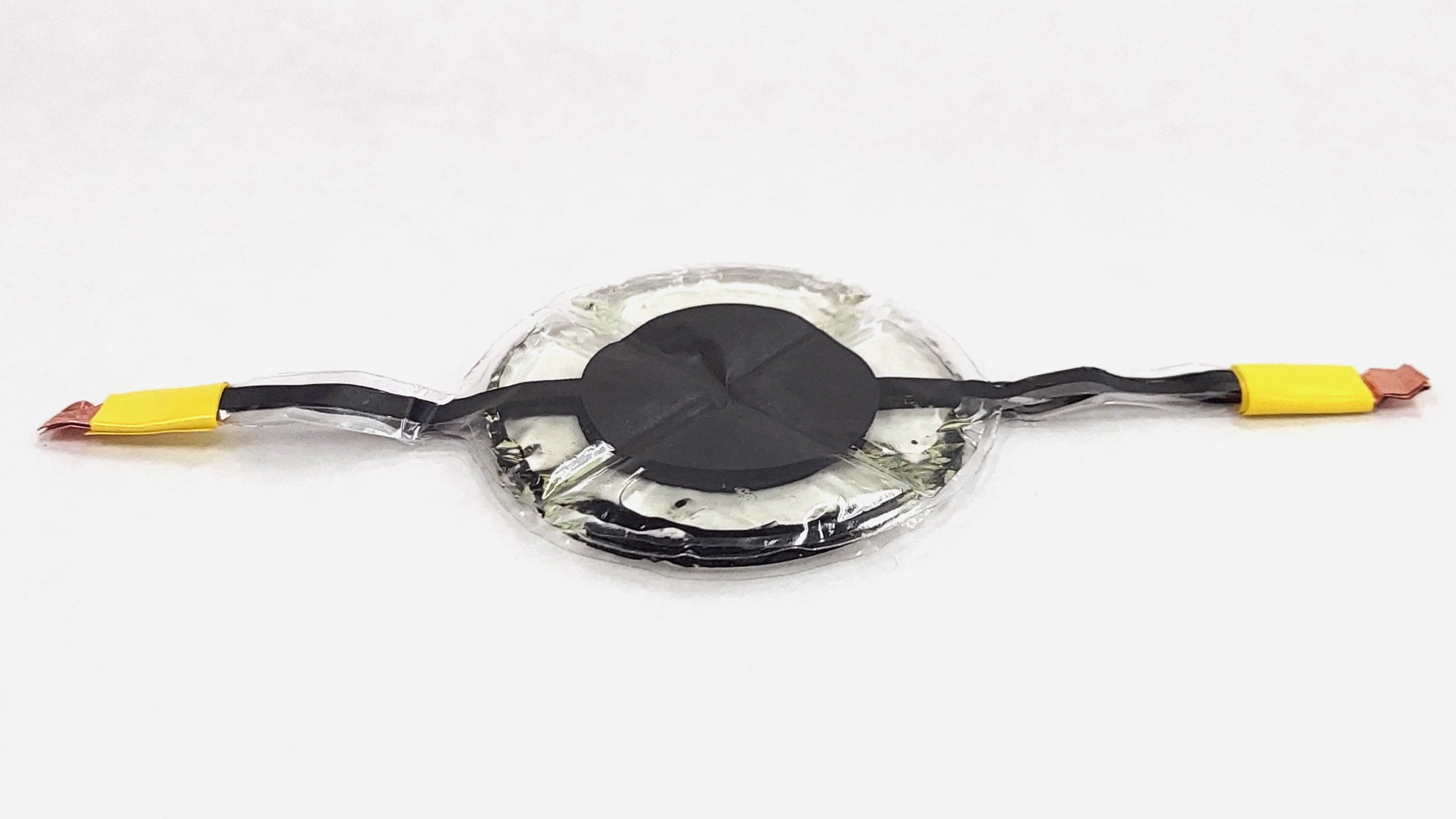

Image of Expanding HASEL Actuator From Artimus Robotics

Product Specifications

Part Number
E-0025-04-10-A-ACAA-60-050
Actuation Type
Expanding
Series
E-Series
Model Number
E-0025
Actuator Stack Quantity
10
Pouches Per Actuator
4
Mounting
None - Free Ends
Weight
20 g
Dimensions (Rest)
54⌀ X 13.8 mm
Voltage Range
2 kV - 8 kV
Blocking Force
19.5 N (@8 kV, <1% Strain)
Free Stroke
11.5 mm (@8 kV)
Typical Lifetime
10 k - 1 M Cycles

Relevant Media
