C-Series Contracting HASEL Actuator

C-5020-15-05-C-ACAC-50-140

Contracting actuator that can achieve fast and smooth actuation with muscle-like performance. The number of actuators within the stack can be varied to suit the desired size or performance characteristics.

Benefits of HASEL Actuators:

  • Electrically controlled

  • Direct linear analog motion

  • Soft, compliant structure

  • High bandwidth

  • Intelligent self-sensing

  • Cost-effective materials

  • Silent operation

  • Fast actuation speeds

  • Compact size

  • Lightweight and portable

  • Modular

  • Easily customizable

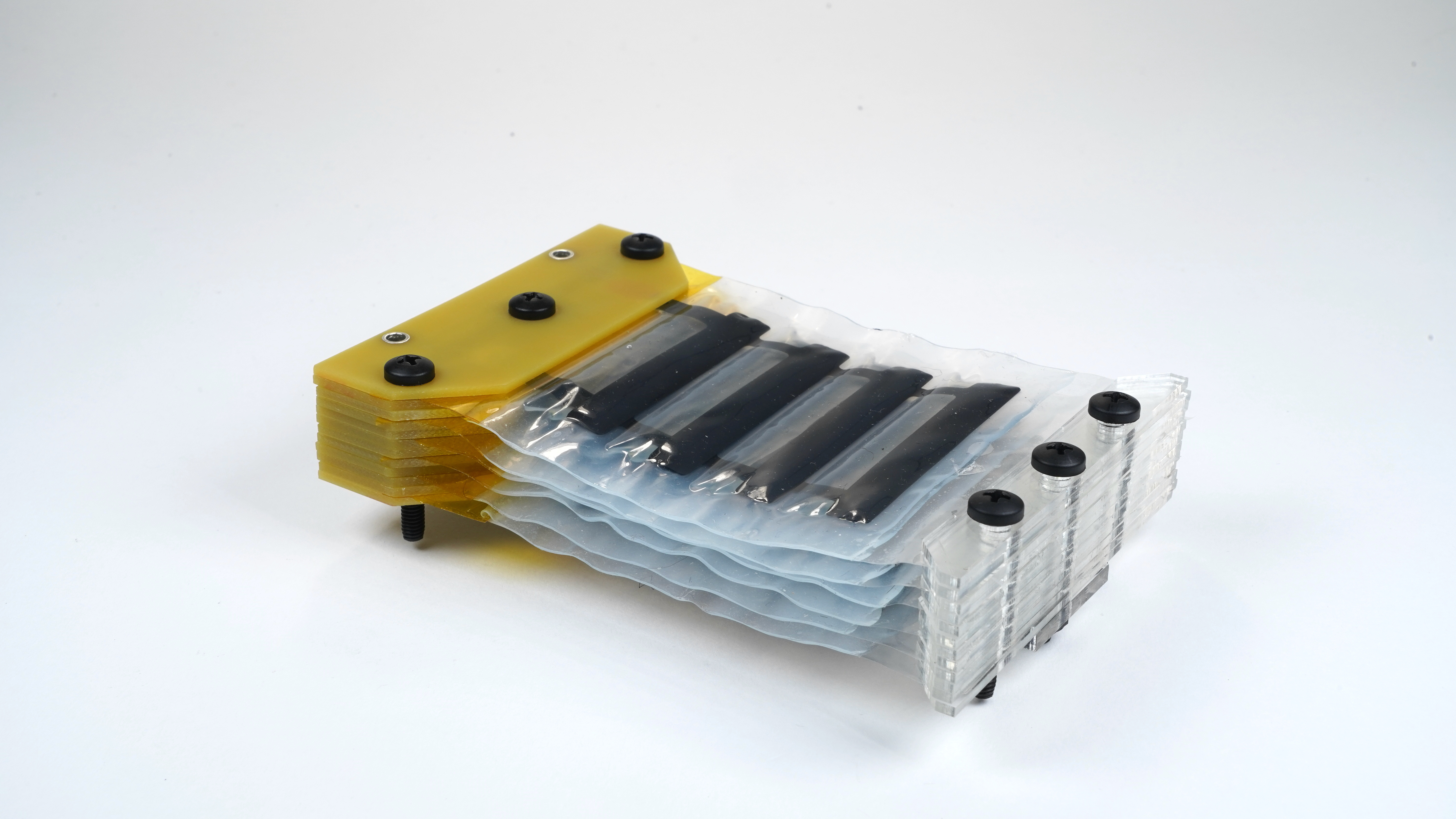

Image of Contracting HASEL Actuator From Artimus Robotics

Product Specifications

Part Number
C-5020-15-05-C-ACAC-50-140
Actuation Type
Contracting
Series
C-Series
Model Number
C-5020
Actuator Stack Quantity
5
Pouches Per Actuator
15
Mounting
Thin Symmetric Mounts
Weight
185 g
Dimensions (Rest)
60 X 368 X 7.5 mm
Voltage Range
2 kV-8 kV
Blocking Force
150 N (@8 kV, <1% Strain)
Free Stroke
18 mm (@8 kV)
Typical Lifetime
10 k - 1 M Cycles

Relevant Media
